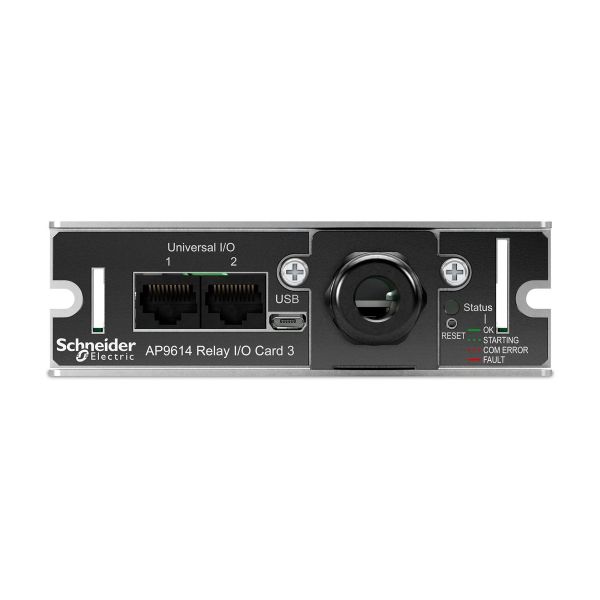

APC Network Management Card

Be the first to review this product

Availability: Out of stock

SKU

AP9614

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

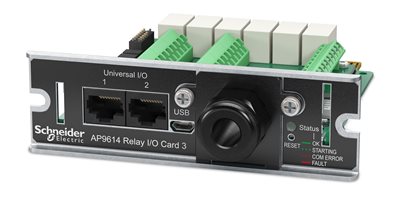

The Dry Contact I/O Card provides 6 configurable output relays and 4 input contacts to monitor external triggers and initiate actions on external devices. The 2 Universal I/O (UIO) ports support optional environmental sensors and the Dry Contact I/O Accessory. The Dry Contact I/O Accessory provides 2 additional dry contact input and relay output interfaces. Connect the included micro-USB cable to the Card and a PC to use the dynamic Web UI. Configure UPS settings and output relay, input contact and environmental sensor actions based on status changes or UPS events.

User-friendly Web Interface: Monitor your device from anywhere with our intuitive web user interface.
Best-in-class Security: Advanced technology and features keep sensitive data secure with the newest and best-in-class security compliance.
Streamlined Firmware Updates: Easily update your device's firmware through the new web interface, making maintenance simpler than ever.

Specifications

General Information
Category	Network interface cards
Description	APC Network Management Card - Remote management adapter - SmartSlot - 10/100 Ethernet x 2 + dry contact - for P/N: SURT5000XLIX438
Manufacturer	APC by Schneider Electric
MSRP	$525.00
UNSPSC	43201404
Main Specifications
Dimensions & Weight / Depth	12.1 cm
Dimensions & Weight / Height	3.8 cm
Dimensions & Weight / Weight	200 g
Dimensions & Weight / Width	12.8 cm
Header / Brand	APC
Miscellaneous / Product Color	Black
Networking / Connectivity Technology	Wired
Networking / Data Link Protocol	Ethernet Fast Ethernet USB
Networking / Type	Remote management adapter
Packaged Quantity	1
Service & Support / Type	2-year warranty
Compatibility Information
Designed For	P/N: SURT5000XLIX438
Dimensions & Weight
Depth	12.1 cm
Height	3.8 cm
Weight	200 g
Width	12.8 cm
Dimensions & Weight (JTFpping)
JTFpping Depth	16.5 cm
JTFpping Height	5.1 cm
JTFpping Weight	440 g
JTFpping Width	23.8 cm
Environmental Parameters
Humidity Range Operating	0 - 95% RH
Max Operating Temperature	40 °C
Min Operating Temperature	0 °C
Expansion / Connectivity
Interfaces	1 x dry contact - terminal block (screw) 1 x USB - 4 pin USB Type B - female 2 x 100Base-TX - RJ-45 - female
General
Device Type	Remote management adapter
Form Factor	Plug-in module
Interface (Bus) Type	SmartSlot
Manufacturer Warranty
Service & Support	Limited warranty - 2 years
Miscellaneous
Cables Included	USB cable - 1.59 m
Compliant Standards	FCC CFR47 Part 15, ANSI C63.4-2014, EN 61000-6-3:2007+A1:2011, EN 61000-6-3, EN 55032:2015, EN 55032, VCCI V-3/2015.04, CISPR 32:2015, EN 61000-3-2, EN 61000-3-3, EN55024, IEC 62040-2 C2, EN 62040-2, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, ICES-003 Class A, China RoHS
Networking
Connectivity Technology	Wired
Data Link Protocol	USB, Ethernet, Fast Ethernet
Features	LED status indicator, reset button
Ports	10/100 Ethernet x 2 + dry contact
Status Indicators	Comm
