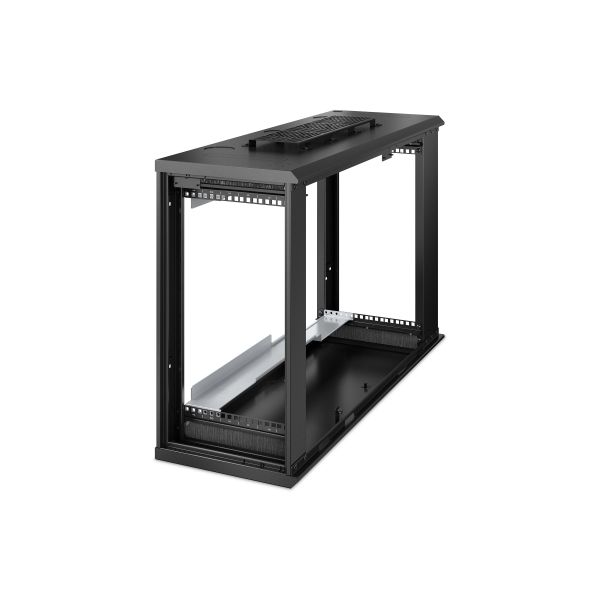

APC NetShelter WX AR106VI
This 6U Wall Mount is an innovative new way to deploy server and networking equipment at the Edge. The unique low-profile design enables large-depth devices to be wall-mounted in a compact and less intrusive form factor than traditional wall-mount cabinets.
- NetShelter WX 6U Wall Mount Enclosure(AR106VI): The APC By Schneider Electric WX 6U Wall Mount Enclosure offers businesses and data centers an innovative and space-efficient solution for deploying server and networking equipment for edge computing applications. This versatile server rack cabinet features detachable wall brackets and optional casters that allow the enclosure to be mounted on the wall or floor to fit the needs of any installation site. | The compact, low-profile server rack or network rack extends only 13 inches (353mm) off the wall and supports equipment up to 30 inches (762mm) long, such as 1U and 2U hyperconverged servers, APC UPS (uninterruptible power supply), and network switches. Multiple enhanced security options (additional purchase required) allow you to protect against physical and environmental dangers, customizing your enclosure to ensure it is safe from a variety of threats.
- Grow Your Edge Network: This 6U wall-mount server rack or network rack cabinet offers a complete storage solution for your edge computing equipment. The cabinet allows for flexible configuration, so you can pick the APC UPS (uninterruptible power supply), rack APC PDU (power distribution unit), and security solutions that best suit your needs. | Innovative Low-Profile Design | The server rack allows large-depth equipment to be wall mounted for optimal efficiency in IT areas with limited floor space. Narrower than traditional wall-mount cabinets, this server rack enclosure has a low-profile design that extends only 13 inches (353mm) off the wall and supports equipment up to 30 inches (762mm) long. | Versatile Installation Options | A detachable wall bracket and optional casters allow the server rack or network rack cabinet to be mounted on either the wall or the floor, and the cabinet door can be reversed to suit the installation space. Both the bottom and the roof of this wallbox feature easy-to-remove knockouts or built-in brush strips which can be used for cable exit and entry.
- Air Filtration and Ventilation: A perforated door with a replaceable MERV 5/G3 dust filter and two integrated fans allow this micro data center to be safely placed in dusty and light-industrial environments. | Enhanced Security and Remote Management Options | For an additional cost, the server rack or network rack cabinet is available with APC Smart UPS battery backup, APC NetBotz Physical and Environmental Security, and EcoStruxure IT (APC’s cloud-based remote monitoring platform), making this enclosure an ideal choice for remote locationsthat lack on-site IT personnel. APC NetBotz provides the functionality required in Edge computing including remote access, video surveillance, environmental management with optional smoke detector and fluid detection. | JTFps Fully Assembled | Shock packaging allows additional optional equipment (APC Smart UPS battery backup, APC NetBotz Physical and Environmental Security, EcoStruxure IT, and third-party IT equipment) to be integrated into the enclosure before it JTFps, speeding up on-site IT deployment.
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | APC NetShelter WX AR106VI - Cabinet - wall mountable - black - 6U - 19" |
| Manufacturer | APC by Schneider Electric |
| MSRP | $1,875.00 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 96.8 cm |
| Dimensions & Weight / Height | 64.8 cm |
| Dimensions & Weight / Weight | 36.29 kg |
| Dimensions & Weight / Width | 35.3 cm |
| Header / Brand | APC |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Product Type | Cabinet |
| Service & Support / Type | 2-year warranty |
| General | |
| Color | Black |
| Depth | 96.8 cm |
| Height | 64.8 cm |
| Height (Rack Units) | 6U |
| Placing / Mounting | Wall mountable |
| Product Type | Cabinet |
| Rack Size | 19" |
| JTFpping Dimensions (WxDxH) / Weight | 106.4 cm x 73.4 cm x 42.7 cm / 44.91 kg |
| Weight | 36.29 kg |
| Width | 35.3 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty: - 2 years |
| Miscellaneous | |
| Compliant Standards | UL 2416, REACH SvHC |
| Features | Low profile |
| Weight Limit | 114 kg |
