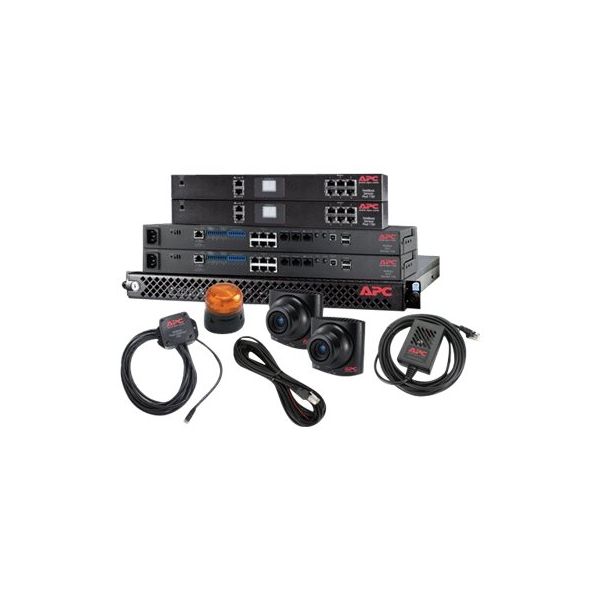

APC InfraStruXure Central Standard Pilot Pak

Be the first to review this product

Availability: Out of stock

SKU

AP9480

UPC Code

731304246251

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

ISX Central 3.0 Standard Pilot Pak is a management platform that enables centralized monitoring, control, trend analysis, and alert history for all of your NetBotz appliances.

Specifications

General Information
Category	Control unit
Description	APC InfraStruXure Central Standard Pilot Pak - Network management device - 100Mb LAN - rack-mountable
Manufacturer	APC by Schneider Electric
MSRP	$16,585.00
UNSPSC	43201542
Main Specifications
Dimensions & Weight / Depth	48.3 cm
Dimensions & Weight / Height	4.4 cm
Dimensions & Weight / Weight	9.6 kg
Dimensions & Weight / Width	54.6 cm
Header / Brand	APC
Networking / Data Link Protocol	Ethernet Fast Ethernet
Networking / Form Factor	Rack-mountable
Networking / Type	Network management device
Packaged Quantity	1
Service & Support / Type	2-year warranty
Environmental Parameters
Humidity Range Operating	5 - 90%
Max Operating Temperature	35 °C
Min Operating Temperature	10 °C
Expansion / Connectivity
Interfaces	2 x 100Base-TX - RJ-45 1 x PS/2 keyboard 1 x PS/2 mouse 1 x VGA 2 x USB - Type A 1 x RS-232 - DB-9
General
Depth	48.3 cm
Device Type	Network management device
Enclosure Color	Silver
Height	4.4 cm
Weight	9.6 kg
Width	54.6 cm
Manufacturer Warranty
Service & Support	Limited warranty - 2 years
Miscellaneous
Compliant Standards	UL 60950
Networking
Data Link Protocol	Ethernet, Fast Ethernet
Encryption Algorithm	SSL
Form Factor	Rack-mountable
Network / Transport Protocol	TCP/IP
Remote Management Protocol	SNMP, HTTP, HTTPS
Power
Power Device	Internal power supply
Processor / Memory / Storage
Hard Drive	HDD 250 GB x 1
RAM	2 GB
Software / System Requirements
Software Included	Drivers & Utilities
