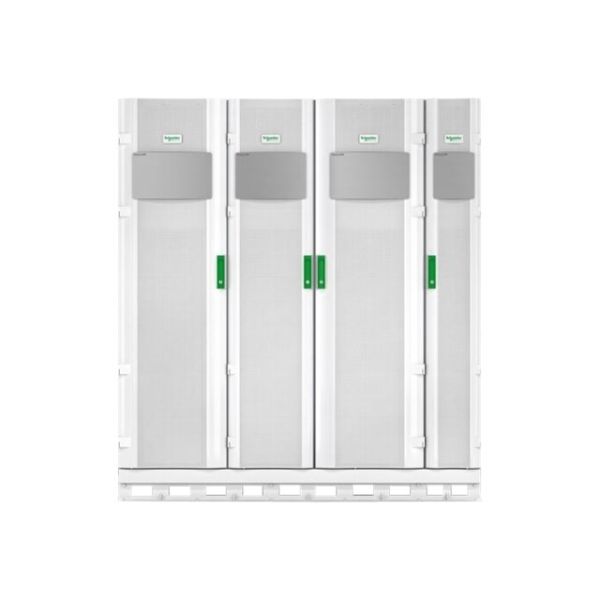

APC Galaxy VM System Bypass Cabinet with load bank breaker

Availability: Out of stock

SKU

GVMSBCLB675KG

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

System bypass cabinet used in a parallel configuration with a maximum load capacity of 675 kVA. Load bank breaker is included.

General Information
Category	Power adapters or inverters
Description	APC Galaxy VM System Bypass Cabinet with load bank breaker - Bypass switch - AC 480 V - 675000 VA - 3-phase - output connectors: 2 - white
Manufacturer	APC by Schneider Electric
MSRP	$42,295.00
UNSPSC	39121006
Main Specifications
Dimensions & Weight
Depth	83.7 cm
Height	197 cm
Weight	585 kg
Width	178.5 cm
Dimensions & Weight (JTFpping)
JTFpping Depth	115.6 cm
JTFpping Height	204.6 cm
JTFpping Weight	675 kg
JTFpping Width	208.5 cm
Environmental Parameters
Humidity Range Operating	0 - 95%
Max Operating Temperature	40 °C
Min Operating Temperature	0 °C
General
Color	White
Device Type	Bypass switch - external
Manufacturer Warranty
Service & Support	Limited warranty - 1 year
Miscellaneous
Compliant Standards	EN 62040-3, FCC Part 15 A, FCC Part 15 B, IEC 62040-3, OSHPD, UL 1778
Power Device
Frequency Required	40 - 70 Hz
Input Voltage	AC 480 V
Input Wiring	3-phase
Output Voltage	AC 480 V
Power Capacity	675000 VA
Power Output Connectors Details	1 x hardwire 4-wire (3PH + G) 1 x hardwire 5-wire (3PH + N + G)
Sustainability Information
ENERGY STAR	Yes
