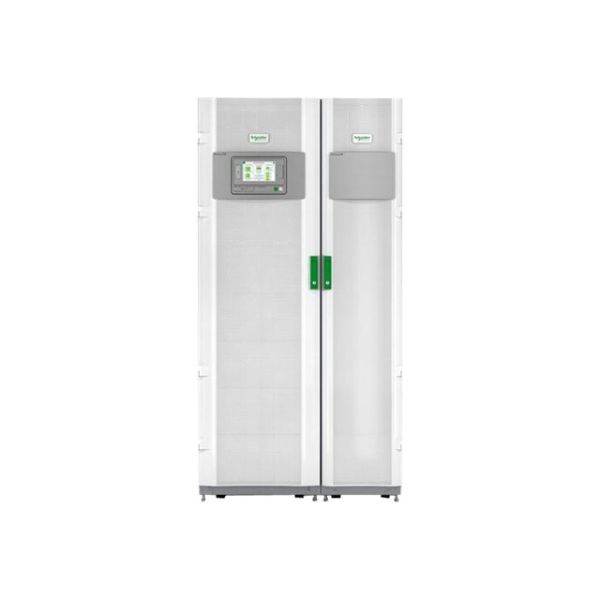

APC Galaxy VM Parallel

Be the first to review this product

Availability: Out of stock

SKU

GVMPB225KG65S

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

A highly compact, energy efficient, 65kAIC rated 3-phase UPS with parallel capability for data centers, facility and industrial applications.

Specifications

General Information
Category	Uninterruptible power supplies
Description	APC Galaxy VM Parallel - UPS - AC 480 V - 202.5 kW - 225000 VA - 3-phase - no battery - output connectors: 2 - white - with Start-Up Service 5X8
Manufacturer	APC by Schneider Electric
MSRP	$0.00
UNSPSC	39121011
Main Specifications
Dimensions & Weight / Depth	85.4 cm
Dimensions & Weight / Height	197 cm
Dimensions & Weight / Weight	704 kg
Dimensions & Weight / Width	100.2 cm
General / Subcategory	UPS
Header / Brand	APC
Miscellaneous / Product Color	White
Packaged Quantity	1
Power Device / Form Factor	External
Power Device / Output Connector Qty	2
Power Device / Power Capacity (VA)	225000 VA
Power Device / UPS Technology	On-line
Power Device / Voltage Required	AC 480 V
Product Type	UPS
Service & Support / Type	1-year warranty
Battery
Type	No battery
Dimensions & Weight
Depth	85.4 cm
Height	197 cm
Weight	704 kg
Width	100.2 cm
Dimensions & Weight (JTFpping)
JTFpping Depth	106 cm
JTFpping Height	215.6 cm
JTFpping Weight	745.18 kg
JTFpping Width	149 cm
Environmental Parameters
Humidity Range Operating	0 - 95%
Max Operating Temperature	40 °C
Min Operating Temperature	0 °C
Sound Emission	65 dBA
Expansion / Connectivity
Expansion Slots	2 (total) / 2 (free) x SmartSlot
General
Bundled Services	Start-Up Service 5X8
Color	White
Device Type	UPS - external
Manufacturer Warranty
Service & Support	Limited warranty - 1 year - on-site
Miscellaneous
Compliant Standards	IP20, EN 62040-3, IEC 62040-3, FCC Part 15 B, UL 1778, OSHPD, RoHS
Features	Touch screen interface, internal bypass, audible alarm, 65kAIC breaker
Power Device
Circuit Protection	Circuit breaker
Frequency Provided	50/60 Hz
Frequency Required	40 - 70 Hz
Input Connectors	1 x hardwire 4-wire (3PH + G)
Input Voltage	AC 480 V
Input Voltage Range	AC 360 - 576 V
Input Wiring	3-phase
Output Voltage	AC 480 V 50/60 Hz
Output Waveform	Sinewave
Power Capacity	202.5 kW / 225000 VA
Power Factor (PF)	0.9
Power Output Connectors Details	1 x hardwire 4-wire (3PH + G) 1 x hardwire 5-wire (3PH + N + G)
UPS Technology	On-line
Sustainability Information
ENERGY STAR	Yes
