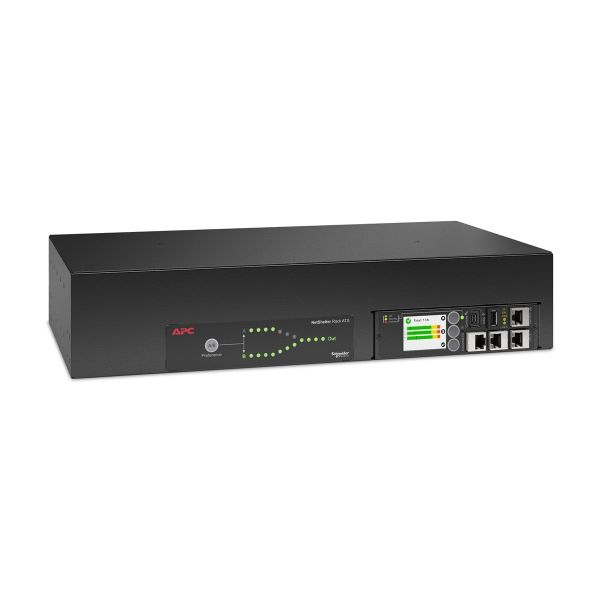

APC NetShelter - Automatic transfer switch (rack-mountable)
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | APC NetShelter - Automatic transfer switch (rack-mountable) - AC 120 V - 2880 VA - 1-phase - USB, Ethernet 10/100/1000 - input: power NEMA L5-30P 24A - output connectors: 16 (NEMA 5-20R 16A) - 2U - 2.43 m cord - black |
| Manufacturer | APC by Schneider Electric |
| MSRP | $3,165.00 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 23.6 cm |
| Dimensions & Weight / Height | 8.8 cm |
| Dimensions & Weight / Weight | 6.33 kg |
| Dimensions & Weight / Width | 43.2 cm |
| Header / Brand | APC |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 16 |
| Power Device / Power Capacity (VA) | 2880 VA |
| Power Device / Voltage Required | AC 120 V |
| Product Type | Automatic transfer switch |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 23.6 cm |
| Height | 8.8 cm |
| Weight | 6.33 kg |
| Width | 43.2 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% |
| Max Operating Temperature | 45 °C |
| Min Operating Temperature | -5 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black |
| Cord Length | 2.43 m |
| Device Type | Automatic transfer switch - rack-mountable |
| Height (Rack Units) | 2U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replace or repair - 2 years |
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | REACH, EN 55022 Class A, FCC Part 15 A, EU RoHS, China RoHS, WEEE |
| Features | Box package, horizontal orientation, front and rear mounting profile, removable battery, short-circuit protection, LED indicators, LCD display |
| Included Accessories | Mounting kit, rack mounting brackets |
| Rack Mounting Kit | Included |
| Networking | |
| Remote Management Interface | USB, Ethernet 10/100/1000 |
| Remote Management Protocol | SNMP, CLI |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Required | 50/60 Hz |
| Input Connectors | 2 x power NEMA L5-30P 24A |
| Input Voltage | AC 120 V |
| Input Voltage Margin | ± 10% |
| Input Voltage Range | AC 108 - 132 V |
| Input Wiring | 1-phase |
| Max Electric Current | 30 A |
| Output Voltage | AC 120 V |
| Power Capacity | 2880 VA |
| Power Output Connectors Details | 16 x power NEMA 5-20R 16 A |
