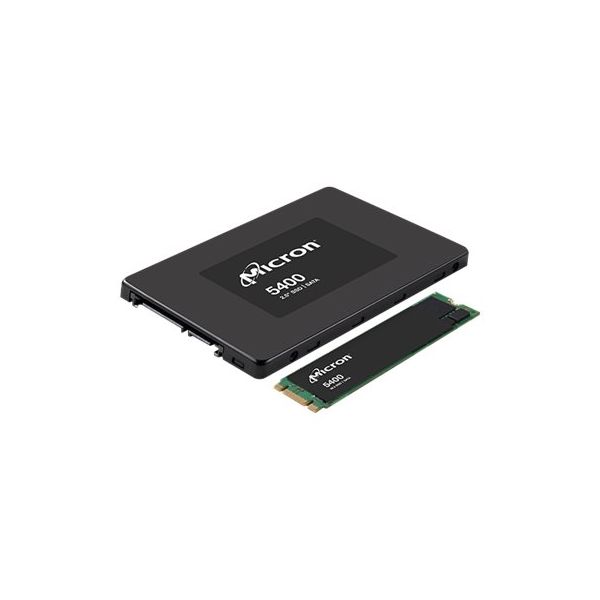

Lenovo ThinkSystem 5400 PRO
The ThinkSystem 5400 PRO Read Intensive SATA SSDs are general-purpose self-encrypting SSDs (SEDs) based on the Micron 5400 PRO platform. They are engineered for greater performance and endurance in a cost-effective design, and to support a broader set of workloads. Self-encrypting drives (SEDs) provide benefits by encrypting data on-the-fly at the drive level with no performance impact, by providing instant secure erasure thereby making the data no longer readable, and by enabling auto-locking to secure active data if a drive is misplaced or stolen from a system while in use. These features are essential for many businesses, especially those storing customer data. Rigorous testing of the 5400 PRO SSDs by Lenovo through the ServerProven program assures a high degree of storage subsystem compatibility and reliability.
| General Information | |
|---|---|
| Category | Hard drives |
| Description | Lenovo ThinkSystem 5400 PRO - SSD - Read Intensive - encrypted - 960 GB - hot-swap - 2.5" - SATA 6Gb/s - 256-bit AES - TCG Enterprise SSC, Self-Encrypting Drive (SED) - for ThinkSystem SD630 V2; SR630 V3; SR645 V3; SR650 V2; SR65X V3; SR665 V3; SR850 V3; SR860 V3 |
| Manufacturer | Lenovo |
| MSRP | $4,099.00 |
| UNSPSC | 43201803 |
| Main Specifications | |
| Hard Drive / Capacity | 960 GB |
| Hard Drive / Form Factor | 2.5" |
| Hard Drive / Hard Drive Type | Hot-swap hard drive |
| Hard Drive / Interface | Serial ATA-600 |
| Hard Drive / Interface | Serial ATA-600 |
| Header / Brand | Micron |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Storage / Type | Solid state drive |
| Compatibility Information | |
| Designed For |
|
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Shock Tolerance (non-operating) | 1500 g @ 0.5 ms |
| Vibration Tolerance (non-operating) | 3.13 gRMS @ 5-800 Hz |
| Expansion & Connectivity | |
| Compatible Bay | 2.5" |
| Interfaces | 1 x SATA 6 Gb/s |
| General | |
| Capacity | 960 GB |
| Device Type | Solid state drive - hot-swap |
| Encryption Algorithm | 256-bit AES |
| Features | 176-layer 3D TLC NAND technology, End-to-end data path protection, Sanitize Cryptographic Erase support, Extended Error Correction Code (ECC), Exclusive-OR (XOR), advanced power loss data management, Advanced Encrypting Standard (AES), S.M.A.R.T. |
| Form Factor | 2.5" |
| Hardware Encryption | Yes |
| Interface | SATA 6Gb/s |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 1 year |
| Miscellaneous | |
| Compliant Standards | Micron Green Standard, EN 55032 Class B, RoHS, SI 2016/1091 Class B, SI 2012/3032 RoHS, FCC CFR47 Part 15, UL 60950-1 Second Edition, IEC 60950-1:2005 Second Edition, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, BSMI CNS 13438 Class B, BSMI CNS 15663, AS/NZS CISPR 32 Class B, KN32 Class B, KN35 Class B, WEEE 2012/19/EU, IEC60950/EN60950, VCCI, ICES-003 Class B, Morocco, EN55032 Class B, EN55024 Class B, UkrSEPRO, UKCA, FCC, UL/cUL, RCM, TUV, IC |
| Performance | |
| 4KB Random Read | 95000 IOPS |
| 4KB Random Write | 33000 IOPS |
| Average Latency | 170 µs |
| Drive Class | Read Intensive |
| Drive Writes Per Day (DWPD) | 1.5 |
| Internal Data Rate | 540 MBps (read) / 520 MBps (write) |
| SSD Endurance | 2628 TB |
| Power | |
| Power Consumption |
|
| Reliability | |
| MTBF | 3000000 hours |
| Non-Recoverable Errors | 1 per 10^17 |
