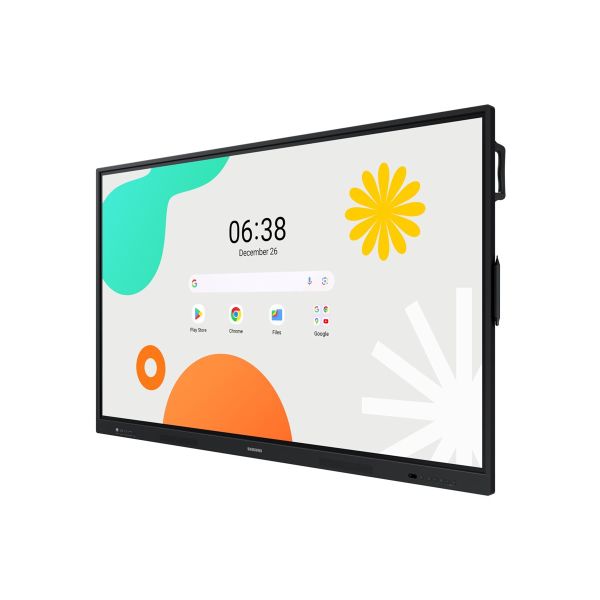

65 INCH ALL-IN-ONE DIGITAL ANDROID BASED INTERACTIVE DISPLAY
- Interactive Display WAF 65":
| General Information | |
|---|---|
| Category | Monitors |
| Description | 65 INCH ALL-IN-ONE DIGITAL ANDROID BASED INTERACTIVE DISPLAY |
| Manufacturer | Samsung |
| MSRP | $2,900.00 |
| UNSPSC | 43211901 |
| Main Specifications | |
| Height | 39.58 |
| Length | 64.00 |
| UPC | 0887276927305 |
| Width | 7.00 |
| Audio System | |
| Output Power / Total | 30 Watt |
| Speaker System | 2 channel |
| Speakers | 2 x main channel speaker - 15 Watt |
| Connections | |
| Connector Type |
|
| Dimensions & Weight (JTFpping) | |
| Depth (JTFpping) | 18.5 cm |
| Height (JTFpping) | 101 cm |
| Weight (JTFpping) | 43.2 kg |
| Width (JTFpping) | 164 cm |
| Display | |
| Additional Features | Infrared multitouch technology, Quick Access |
| Brightness | 400 cd/m² |
| Coating | 5 MOHS hardness, 3.2 mm glass, 25% haze |
| Commercial Features | Open Pluggable Standard (OPS) support |
| Display Format | 4K UHD (2160p) |
| Dynamic Contrast Ratio | 4000:1 |
| Frame Rate & Enhancement Technology | 60 Hz Refresh Rate |
| Image Aspect Ratio | 16:9 |
| Image Contrast Ratio | 1200:1 |
| LCD Backlight Technology | Direct LED |
| Resolution | 3840 x 2160 |
| Response Time | 8 ms |
| Touchpoints Qty | 40 |
| Viewing Angle | 178° |
| Viewing Angle (Vertical) | 178° |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Combined With | Touchscreen (multi touch) |
| Commercial Use | Yes - education / business |
| Depth | 8.77 cm |
| Diagonal Class | 65" |
| Dimensions | Without stand |
| Enclosure Color | Black |
| HDMI Ports Qty | 2 ports |
| Height | 89.14 cm |
| Modes | Landscape mode |
| Operating System | Android OS 14 |
| Platform | Android |
| Power Consumption (Max) | 286 Watt |
| Power Consumption Operational | 172 Watt |
| Product Type | LED-backlit LCD flat panel display |
| Sensors | Eco Sensor |
| Series | WAF Series |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Video Interface | HDMI, USB-C |
| Weight | 35.2 kg |
| Width | 148.21 cm |
| Media Player | |
| Configuration | ARM Cortex-A73 Quad-Core + ARM Cortex-A53 Quad-Core - 8 GB - 64 GB |
| USB Port | Yes |
| USB Ports Qty | 5 |
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | Google EDLA, IEC 62368-1, UL 62368-1, IEC 60950-1, IS 13252, FCC 47 CFR Part 15 Subpart B, EN 55032:2015+A11:2020, EMC, Safety certification, WFA, WPA, WPA2, WPA3, WPS2.0 |
| Included Accessories | 2 stylus pens |
| Network & Internet Multimedia | |
| Application Store | Google Play |
| Connect & Share | Screen Share |
| Connectivity | Wi-Fi, LAN, Bluetooth |
| Functionality | Whiteboard, WEB browsing, digital video playback |
| LAN Protocol | Gigabit Ethernet |
| Wi-Fi Protocol | 802.11ac |
| Power | |
| Heat Generation | 388 BTU/h |
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption Stand by | 0.5 Watt |
| Power Device | Power supply |
| Remote Control | |
| Type | Remote control |
| Stands & Mounts | |
| Flat Panel Mount Interface | 600 x 400 mm |
| Stand | Optional |
| VESA Compatibility | Yes |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
