4K PAN TILT ZOOM CAMERA WITH 1.0-TYPE EXMOR R CMOS SENSOR (COLOUR AVAILABILITY M

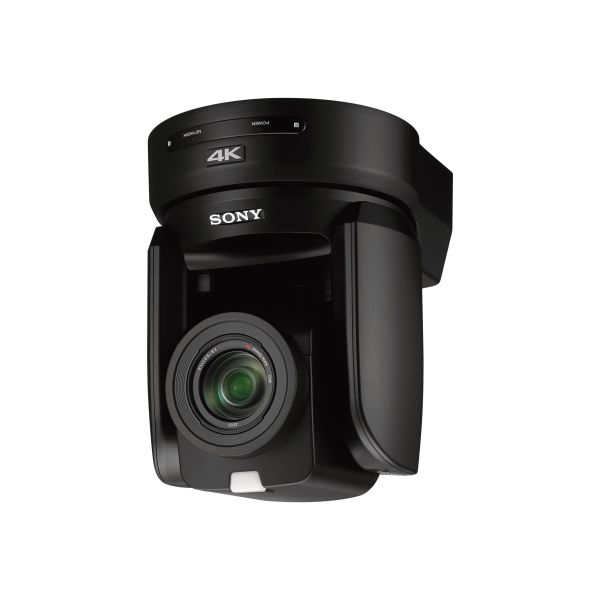

The BRC-X1000 is Sony's first 4K remote camera, combining uncompromising broadcast picture quality and smooth, silent PTZ operation with the flexibility of 3G-SDI and HDMI connections. Designed for remote operation, this compact but powerful robotic camera is an ideal complement to other broadcast cameras for capturing images in hard-to-reach or unobtrusive positions. It's equally at home in TV newsrooms, remote studios and on-air suites, auditoriums, houses of worJTFp, courtrooms or sports stadiums. It's also particularly suited to efficient multi-camera set-ups, under the control of a single operator.
| General Information | |
|---|---|
| Category | Video conference cameras |
| Description | 4K PAN TILT ZOOM CAMERA WITH 1.0-TYPE EXMOR R CMOS SENSOR (COLOUR AVAILABILITY M |
| Manufacturer | Sony |
| MSRP | $10,700.00 |
| UNSPSC | 45121506 |
| Main Specifications | |
| Dimensions & Weight / Weight | 17 |
| Height | 11.811 |
| Lead Time | 56 |
| Lead Time Effective Date | 12/10/22 |
| Length | 17.559 |
| List Price | 7619.62 |
| Quantity Measurement | EA |
| Unit of Measure | IN |
| UNSPSC Code | 46171610 |
| UPC | 027242285866 |
| Width | 15.905 |
| Camera | |
| Exposure Range | 1/6 sec - 1/10000 sec |
| Features | Auto exposure control, image flip, Visibility Enhancer, 100 preset positions, auto gain control, auto white balance |
| Horizontal Resolution (TV Lines) | 1800 |
| Minimum Illumination | 1.7 lux F2.8 - 50 IRE - shutter 1/30 sec |
| Type | Color - Day&Night - pan / tilt / zoom |
| Video Modes | 1080/50i, 720/50p, 1080/50p, 1080/60p, 2160/25p, 1080/59.94i, 1080/59.94p, 720/59.94p, 1080/23.98p, 2160/23.98p, 2160/29.97p |
| Environmental Parameters | |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Ports |
|
| General | |
| Camera Mount Type | Ceiling mount |
| Connectivity Technology | Wired |
| Depth | 23.8 cm |
| Device Type | Conference camera |
| Height | 26 cm |
| Weight | 4.3 kg |
| Width | 19.8 cm |
| Image Sensor | |
| Type | 20.4 MP Exmor R CMOS 1" |
| Interfaces | |
| Control Interface | RS-422, VISCA |
| Video | HDMI, 3G-SDI |
| Lens Construction | |
| Focal Length | 9.3 mm - 111.6 mm |
| Focus Adjustment | Automatic, manual |
| Horizontal Field of View (degree) | 64.6 |
| Lens Iris | F/2.8-4.5 |
| Min Focus Distance | 8 cm |
| Optical Zoom | 12 x |
| Type | Motorized zoom |
| Miscellaneous | |
| Color | Black |
| Compliant Standards | IEEE 802.3at |
| Included Accessories | Remote control, wire rope, 2 ceiling mount brackets |
| Panning | |
| Range (degree) | -170 to +170 |
| Speed (degree/sec) | Up to 60 |
| Power | |
| Power Device | 25.5 Watt |
| Power Requirements | DC 10.8 - 13.2 V / PoE Plus |
| Tilting | |
| Range (degree) | -30 to +90 |
| Speed (degree/sec) | Up to 60 |
