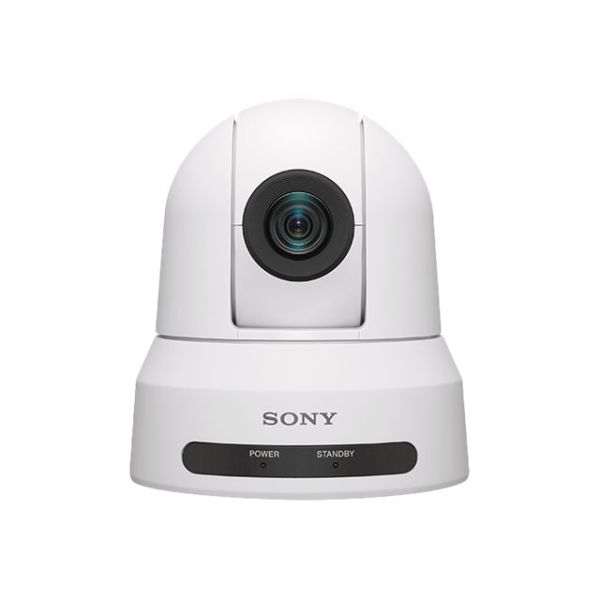

4K/HDMI/USB OPTICAL 20X / POE+ (WHITE)
| General Information | |
|---|---|
| Category | Security cameras |
| Description | 4K/HDMI/USB OPTICAL 20X / POE+ (WHITE) |
| Manufacturer | Sony |
| MSRP | $3,140.00 |
| UNSPSC | 46171610 |
| Main Specifications | |
| Dimensions & Weight / Weight | 7.628 |
| Lead Time | 14 |
| Lead Time Effective Date | 12/03/22 |
| List Price | 2099.17 |
| Quantity Measurement | EA |
| UNSPSC Code | 45121516 |
| UPC | 027242925175 |
| Camera | |
| Digital Zoom | 40 |
| Exposure Range | 1/1 sec - 1/10000 sec |
| Features | Auto ICR, 100 preset positions, Visibility Enhancer, image stabilizer, image flip, Flicker Cancel, standby mode, remote standby, web interface, Clear Image Zoom |
| Frame Rate (max) | 59.94 frames per second |
| Horizontal Resolution (TV Lines) | 1700 |
| Max Digital Video Resolution | 3840 x 2160 |
| Minimum Illumination | 1.6 lux F2.0 - 50 IRE - shutter 1/30 sec |
| Type | Color - Day&Night - pan / tilt / zoom |
| Video Modes | 2160/29.97p, 2160/25p, 1080/59.94p, 1080/50p, 1080/30p, 1080/25p, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p |
| Environmental Parameters | |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Ports |
|
| General | |
| Camera Mount Type | Ceiling mount, surface mount |
| Connectivity Technology | Wired |
| Depth | 20.02 cm |
| Device Type | Conference camera |
| Form Factor | Turret |
| Height | 17.75 cm |
| Weight | 1.6 kg |
| Width | 15.84 cm |
| Image Sensor | |
| Type | 8.5 MP Exmor R CMOS 1/2.5" |
| Interfaces | |
| Control Interface | VISCA |
| Video | HDMI, USB |
| Lens Construction | |
| Focal Length | 4.4 mm - 88 mm |
| Focus Adjustment | Automatic, manual |
| Lens Iris | F/2.0-3.8 auto iris |
| Min Focus Distance | 8 cm |
| Optical Zoom | 20 x |
| Type | Motorized zoom |
| Miscellaneous | |
| Color | White |
| Compliant Standards | IEEE 802.3af |
| Included Accessories | Power adapter, remote control, ceiling mount bracket, 9 screws M3x8, wire rope, screw M2.6x6, HDMI cable fixing plate |
| Panning | |
| Range (degree) | -170 to +170 |
| Speed (degree/sec) | Up to 300 |
| Power | |
| Power Device | Power adapter / PoE - external AC 100-240 V (50/60 Hz) 25.5 watt |
| Power Requirements | DC 12 V / PoE Plus |
| Tilting | |
| Range (degree) | -20 to +90 |
| Speed (degree/sec) | Up to 126 |
