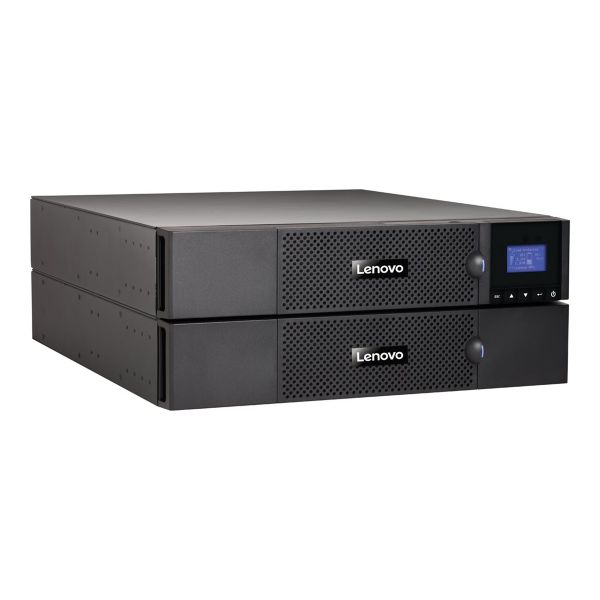

Lenovo - UPS (rack-mountable)

Availability: Out of stock
SKU
7DD5A005WW
Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transactionsecure transaction
The Lenovo UPS provides reliable power protection suited for various environments. This uninterruptible power supply maintains functionality within a temperature range of 0°C to 70°C, ensuring dependable operation in challenging conditions. Built to accommodate a wide range of systems, it offers a total power capacity of 3000 VA with an output of 3000 watts, effectively supporting critical equipment during power outages or fluctuations. The rack-mountable form factor and expandable battery options make it a flexible choice for various installations, complemented by an included rack mounting kit. With advanced connectivity features, this UPS allows for comprehensive management through two 5 pin Micro-USB Type-B connectors, as well as Ethernet and RS-232 options. This ensures seamless integration into existing network infrastructures for remote monitoring and management. Furthermore, the device complies with multiple safety standards, including CSA, UL, RoHS, and UKCA, providing peace of mind in compliance practices and electrical safety.
General Information
CategoryUninterruptible power supplies
DescriptionLenovo - UPS (rack-mountable) - AC 200 - 240 V - 3000 Watt - 3000 VA - Ethernet, USB - 2U - Worldwide
ManufacturerLenovo
MSRP$11,109.00
UNSPSC39121011
Main Specifications
Dimensions & Weight / Depth60.2 cm
Dimensions & Weight / Height8.6 cm
Dimensions & Weight / Weight32.1 kg
Dimensions & Weight / Width44.1 cm
General / SubcategoryUPS
Header / BrandLenovo
Header / Country KitsWorldwide
Miscellaneous / Product ColorBlack
Networking / Remote Management Interface
  • Ethernet
  • USB
Packaged Quantity1
Power Device / Form FactorRack-mountable
Power Device / Power Capacity (VA)3000 VA
Power Device / UPS TechnologyLine interactive
Power Device / Voltage RequiredAC 200 - 240 V
Product TypeUPS
Service & Support / Type3-year warranty
Battery
TypeExpandable
Dimensions & Weight
Depth60.2 cm
Height8.6 cm
Weight32.1 kg
Width44.1 cm
Environmental Parameters
Humidity Range Operating10 - 90%
Max Operating Temperature70 °C
Min Operating Temperature0 °C
Expansion / Connectivity
Interfaces
  • 1 x RS-232
  • 1 x management (USB) - 5 pin Micro-USB Type B
  • 2 x management (Ethernet)
General
Device TypeUPS - rack-mountable
Height (Rack Units)2U
LocalizationWorldwide
Manufacturer Warranty
Service & Support
  • Limited warranty - 3 years
  • Limited warranty - batteries - 3 years
Miscellaneous
Compliant StandardsCSA, UL, cUL, RoHS, SGS, PVOC, UKCA
FeaturesFault alarm
Rack Mounting KitIncluded
Networking
Remote Management InterfaceEthernet, USB
Power Device
Frequency Provided50/60 Hz
Frequency Required50/60 Hz
Input VoltageAC 200 - 240 V
Max Electric Current16 A
Output VoltageAC 200/208/220/230/240 V 50/60 Hz
Output WaveformSinewave
Power Capacity3000 Watt / 3000 VA
Power Output Connectors Details
  • 8 x power IEC 60320 C13
  • 2 x power IEC 60320 C19
UPS TechnologyLine interactive
