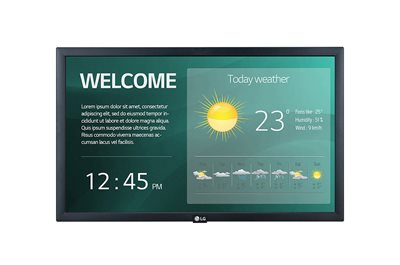

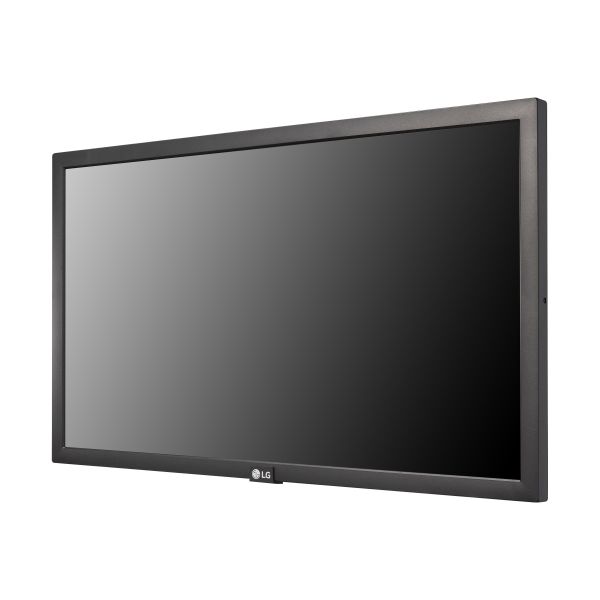

LG 22SM3B-B - 22" Diagonal Class (21.5" viewable)

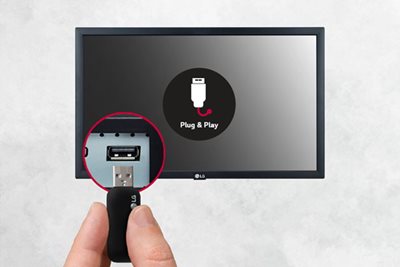

- 22” SM3G-B Series IPS FHD LED Back-lit Digital Display with Embedded CMS, Quad Core SoC with webOS™ 4.0, Smart Signage Platform & Built-in Wi-Fi: Brightness (Typ.): 250 cd/m² | Bezel: 16.3 mm | Depth: 53.8 mm | Interface: HDMI(2) / USB 2.0 / RS232C / RJ45 / IR / Audio | USB Plug & Play, Built-in Wi-Fi
- Content Sharing: Content Mirroring among devices is more convenient on a Wi-Fi network.
- Real-time Promotion: With Beacon and BLE (Bluetooth Low Energy), shop managers can provide coupons and information in real-time.
- Wireless Solution: 22SM3G-B operates as a virtual router which can be a wireless access point for mobile devices.
| General Information | |
|---|---|
| Category | Monitors |
| Description | LG 22SM3B-B - 22" Diagonal Class (21.5" viewable) - SM3G Series LED-backlit LCD display - digital signage with Integrated Pro:Idiom - 1080p 1920 x 1080 - black |
| Manufacturer | LG Electronics |
| MSRP | $532.00 |
| UNSPSC | 43211901 |
| Main Specifications | |
| Height | 5.00 |
| Length | 23.00 |
| UPC | 0719192636200 |
| Width | 15.00 |
| Audio System | |
| Output Power / Total | 2 Watt |
| Speaker System | 2 speakers |
| Speakers | 2 x speaker - 1 Watt |
| Connections | |
| Connector Type |
|
| Dimensions & Weight (JTFpping) | |
| Depth (JTFpping) | 10.3 cm |
| Height (JTFpping) | 35.7 cm |
| Weight (JTFpping) | 4.74 kg |
| Width (JTFpping) | 56.5 cm |
| Display | |
| Additional Features | Image Sticking Minimization (ISM), Crestron Connected Compatible, BEACON technology, picture in picture (no tuner), picture by picture (no tuner) |
| Backlight Life | 30,000 hour(s) |
| Brightness | 250 cd/m² |
| Coating | 25% haze |
| Commercial Features | SMART Signage Platform, SNMP support, Local Contents Scheduling, SuperSign CMS compatible, SuperSign Control+ compatible, SuperSign Control compatible, Real Time Communication (webRTC), Local Key Operation, FailOver |
| Display Format | 1080p |
| Frame Rate & Enhancement Technology | 60 Hz Refresh Rate |
| Image Aspect Ratio | 16:9 |
| Image Contrast Ratio | 1000:1 |
| LCD Backlight Technology | LED backlight |
| LCD Display Technology | IPS |
| Operation Hours / Days | 16 / 7 |
| Resolution | 1920 x 1080 |
| Response Time | 14 ms |
| Settings Cloning Capability | Yes |
| Viewing Angle | 178° |
| Viewing Angle (Vertical) | 178° |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 80% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Commercial Use | Yes - digital signage |
| Depth | 5.38 cm |
| Diagonal Class | 22" |
| Diagonal Size | 21.5" |
| Dimensions | Without stand |
| Enclosure Color | Black |
| HDMI Ports Qty | 2 ports |
| Height | 30.21 cm |
| Modes | Landscape mode |
| Operating System | webOS |
| Power Consumption Operational | 33 Watt |
| Product Type | LED-backlit LCD flat panel display with Integrated Pro:Idiom |
| Sensors | Temperature sensor |
| Series | SM3G Series |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Video Interface | HDMI |
| Video Processor | Quad-Core |
| Weight | 3.34 kg |
| Width | 51.03 cm |
| Media Player | |
| Configuration | 8 GB |
| Storage Drive Capacity | 8 GB |
| USB Port | Yes |
| USB Ports Qty | 1 |
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | Plug and Play, FCC Class A certified, CB, EMC, NRTL, HDCP 2.2 |
| Network & Internet Multimedia | |
| Connect & Share | Content Share, Screen Share |
| Connectivity | Wi-Fi, LAN, Bluetooth |
| Power | |
| Features | Smart energy saving, WOL (Wake on LAN) |
| Input Voltage | AC 120/230 V (50/60 Hz) |
| Power Device | Power supply |
| Remote Control | |
| Type | Remote control |
| Stands & Mounts | |
| Flat Panel Mount Interface | 100 x 100 mm |
| VESA Compatibility | Yes |
