EIGHT PORT 10/100/1000 ETHERNET SWITCH I

EIGHT PORT 10/100/1000 ETHERNET SWITCH I

Cisco 4-Port Serial Shared Port Adapter

Cisco 4-Port Serial Shared Port Adapter

Cisco 2-port Channelized T3/E3 CE Over Packet & Channelized ATM SPA

Cisco 2-port Channelized T3/E3 CE Over Packet & Channelized ATM SPA

Be the first to review this product
Availability: Out of stock
SKU
SPA-2CHT3-CE-ATM=
Compare with Similar items
Request a Quote
Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transactionsecure transaction
Add to Wish List Add to Compare
Details

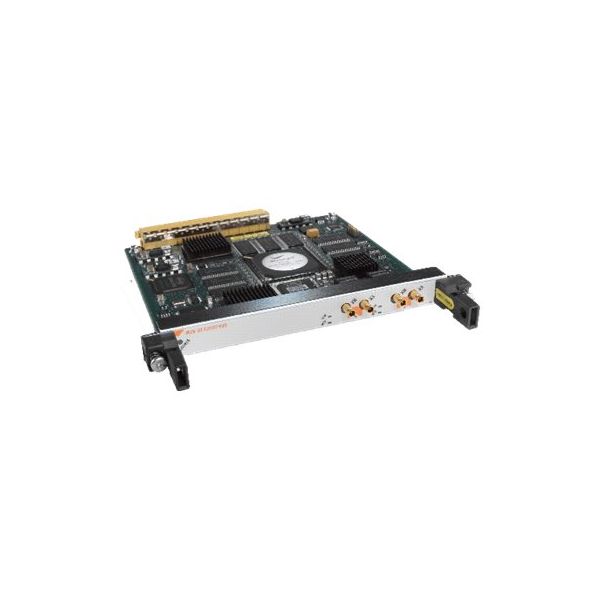

The Cisco 2-Port Channelized T3/E3 circuit emulation over packet and ATM SPA is available on high-end Cisco routing platforms, offering the benefits of network scalability with lower initial costs and easy upgrades. The Cisco SPA/SIP portfolio continues Cisco's focus on investment protection along with consistent feature support, broad interface availability, and the latest technology. The Cisco SPA/SIP portfolio allows different interfaces to be deployed on the same interface processor.
Specifications
General Information
CategoryNetwork interface cards
DescriptionCisco 2-port Channelized T3/E3 CE Over Packet & Channelized ATM SPA - Expansion module - 10Mb LAN, ATM, PPP, POS - 2 ports - T-3/E-3 - for Cisco 7603, 7604, 7606, 7609, 7613; ASR 1001, 1002, 1004, 1006, 1013; XR 12XXX
ManufacturerCisco Systems
MSRP$41,150.21
UNSPSC43201404
Main Specifications
Dimensions & Weight / Depth18.5 cm
Dimensions & Weight / Height2 cm
Dimensions & Weight / Weight340 g
Dimensions & Weight / Width17.2 cm
Header / BrandCisco
Networking / Connectivity TechnologyWired
Networking / Data Link Protocol
  • ATM
  • Ethernet
  • POS
  • PPP
Networking / TypeExpansion module
Packaged Quantity1
Compatibility Information
Designed For
  • Cisco 7603, 7603-S, 7604, 7604 Security Bundle, 7606, 7606 Security Bundle, 7606-S, 7609, 7609 Security Bundle, 7609-S, 7613, 7613 Security Bundle
  • Cisco ASR 1001, 1002, 1002 BB Bundle, 1002 FPI Bundle, 1002 HA Bundle, 1002 Security HA Bundle, 1002 VPN and Firewall Bundle, 1002 VPN Bundle, 1002-F, 1002-F Security HA Bundle, 1002-F VPN and Firewall Bundle, 1002-F VPN Bundle, 1004, 1004 FPI Bundle, 1004 HA Bundle, 1004 Security HA Bundle, 1004 VPN and Firewall Bundle, 1004 VPN Bundle, 1006, 1006 BB Bundle, 1006 FPI Bundle, 1006 HA Bundle, 1006 Security HA Bundle, 1006 VPN and Firewall Bundle, 1006 VPN Bundle, 1013
  • Cisco XR 12000, 12404, 12406, 12406E, 12410, 12416
Dimensions & Weight
Depth18.5 cm
Height2 cm
Weight340 g
Width17.2 cm
Environmental Parameters
Humidity Range Operating5 - 85%
Max Operating Temperature40 °C
Min Operating Temperature5 °C
Expansion / Connectivity
Compatible Slots1 x expansion slot
Interfaces2 x T3/E3
General
Device TypeExpansion module - 2 ports
Form FactorPlug-in module
Miscellaneous
Compliant StandardsVCCI, EN55022, ICES-003, EN55024, CISPR 22, EN50082-1, EN 61000-6-1, AS/NZS 60950-1, FCC Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, NEBS, EN 300 386
Networking
Compliant StandardsANSI T1.102
Connectivity TechnologyWired
Data Link ProtocolEthernet, ATM, PPP, POS
FeaturesMPLS support, traffic shaping, EZQoS
Line RateT-3/E-3
Network / Transport ProtocolPPPoA, ARP
Remote Management ProtocolSNMP
Status IndicatorsPort status, active, carrier detect, status, alarm
Reviews
Write Your Own Review
You're reviewing:Cisco 2-port Channelized T3/E3 CE Over Packet & Channelized ATM SPA
Your Rating
Cross-sell disabled
Request a Quote
secure transactionsecure transaction
Quick Shipping
Quick Shipping
Usually ships in 1 business day
View all Cisco Products
i

Quick Details

  • Expansion module
  • 10Mb LAN, ATM, PPP, POS
  • 2 ports
  • T-3/E-3
  • for Cisco 7603, 7604, 7606, 7609, 7613; ASR 1001, 1002, 1004, 1006, 1013; XR 12XXX
