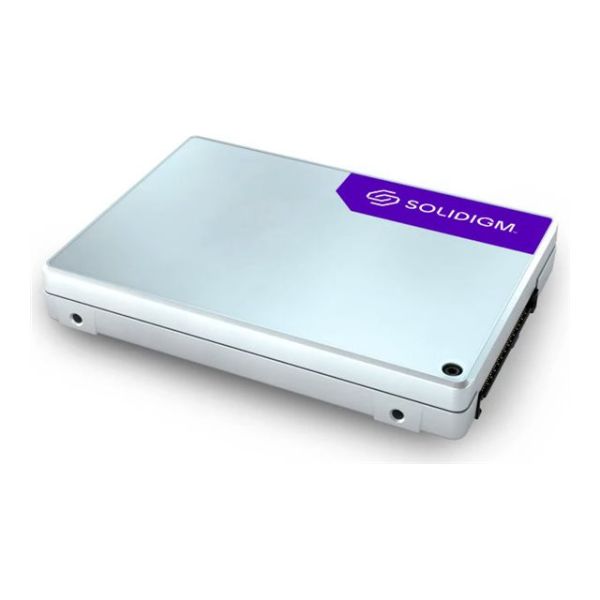

Solidigm P5336 - SSD
The Lenovo Solidigm P5336 is a powerful 2.5" hot-swap solid-state drive designed for read-intensive applications. With a capacity of 15.36 TB, it utilizes 3D quad-level cell (QLC) NAND flash memory for performance and endurance, featuring an SSD endurance of 14.1 PB. The U.2 PCIe 4.0 x4 (NVMe) interface allows for rapid data access, delivering internal data rates of up to 3.4 GBps with an average latency of just 9 ms. This drive is engineered to operate efficiently within a wide temperature range, ensuring reliability even in demanding environments, with a maximum storage temperature of 95°C and operating humidity levels from 5% to 90%. Equipped with features that enhance durability and data protection, the P5336 includes thermal throttling and monitoring, as well as power loss data protection and end-to-end data protection. With a mean time between failures (MTBF) of 2,000,000 hours, users can trust the P5336 to perform consistently over time. It also supports TCG Opal Encryption 2.01 for hardware-level security, making it a reliable choice for critical storage needs.
| General Information | |
|---|---|
| Category | Hard drives |
| Description | Solidigm P5336 - SSD - Read Intensive - encrypted - 15.36 TB - hot-swap - 2.5" - U.2 PCIe 4.0 x4 (NVMe) - TCG Opal Encryption 2.01 |
| Manufacturer | Lenovo |
| MSRP | $29,099.00 |
| UNSPSC | 43201803 |
| Main Specifications | |
| Dimensions & Weight / Depth | 100 mm |
| Dimensions & Weight / Height | 15 mm |
| Dimensions & Weight / Weight | 146 g |
| Dimensions & Weight / Width | 70 mm |
| Hard Drive / Capacity | 15.36 TB |
| Hard Drive / Form Factor | 2.5" |
| Hard Drive / Hard Drive Type | Hot-swap hard drive |
| Hard Drive / Interface | U.2 PCIe 4.0 x4 (NVMe) |
| Hard Drive / Interface | U.2 PCIe 4.0 x4 (NVMe) |
| Header / Brand | Solidigm |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Storage / Type | Solid state drive |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Max Operating Temperature | 70 °C |
| Max Storage Temperature | 95 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -55 °C |
| Shock Tolerance (operating) | 1000 g @ 0.5 ms |
| Vibration Tolerance (operating) | 2.17 gRMS @ 5-700 Hz |
| Expansion & Connectivity | |
| Compatible Bay | 2.5" |
| Interfaces | 1 x U.2 PCIe 4.0 x4 (NVMe) |
| General | |
| Capacity | 15.36 TB |
| Depth | 100 mm |
| Device Type | Solid state drive - hot-swap |
| Features | Thermal throttling, Thermal Monitoring, power loss data protection, End-to-end data protection, S.M.A.R.T. |
| Form Factor | 2.5" |
| Hardware Encryption | Yes |
| Height | 15 mm |
| Interface | U.2 PCIe 4.0 x4 (NVMe) |
| NAND Flash Memory Type | 3D quad-level cell (QLC) |
| Weight | 146 g |
| Width | 70 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 1 year |
| Miscellaneous | |
| Compliant Standards | FCC Title 47, CAN/CSA-CEI/IEC CISPR 22:02, EN 55024:1998, EN 55022:2006, EN 60950-1 Second Edition, UL/CSA EN-60950-1 2nd Edition, Directive 2006/95/EC, C-Tick AS/NZS3584, BSMI CNS 13438, KCC Article 11.1, ROHS Directive 2011/65/EU, WEEE Directive 2002/96/EC |
| Performance | |
| 4KB Random Read | 1005000 IOPS |
| 4KB Random Write | 24000 IOPS |
| Average Latency | 9 µs |
| Drive Class | Read Intensive |
| Drive Writes Per Day (DWPD) | 0.51 |
| Internal Data Rate | 3.4 GBps (read) / 3 GBps (write) |
| SSD Endurance | 14.1 PB |
| Power | |
| Power Consumption |
|
| Reliability | |
| MTBF | 2,000,000 hours |
| Recoverable Errors | 1 per 10^17 |
