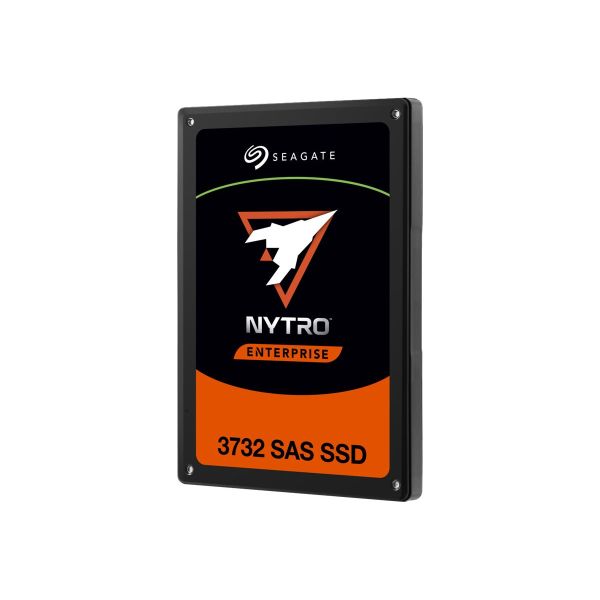

Lenovo ThinkSystem Nytro 3732 Performance

Be the first to review this product

Availability: Out of stock

SKU

4XB7A70007

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

The ThinkSystem Nytro 3732 Performance 12Gb SAS solid-state drives (SSDs) are high-performance SSDs suitable for write-intensive applications of running on ThinkSystem servers.

Specifications

General Information
Category	Hard drives
Description	Lenovo ThinkSystem Nytro 3732 Performance - SSD - encrypted - 800 GB - hot-swap - 2.5" - SAS 12Gb/s - 256-bit AES - Self-Encrypting Drive (SED) - CRU - for ThinkSystem SR570; SR63X; SR645; SR65X; SR665; SR670; SR850; SR850 V2; SR860 V2; SR950
Manufacturer	Lenovo
MSRP	$1,689.00
UNSPSC	43201803
Main Specifications
Dimensions & Weight / Depth	100 mm
Dimensions & Weight / Height	15 mm
Dimensions & Weight / Weight	136 g
Dimensions & Weight / Width	70 mm
Hard Drive / Capacity	800 GB
Hard Drive / Form Factor	2.5"
Hard Drive / Hard Drive Type	Hot-swap hard drive
Hard Drive / Interface	Serial Attached SCSI 3
Hard Drive / Interface	Serial Attached SCSI 3
Header / Brand	Lenovo
Miscellaneous / Product Color	Black Orange
Packaged Quantity	1
Service & Support / Type	1-year warranty
Storage / Type	Solid state drive
Compatibility Information
Designed For	Lenovo ThinkSystem SN550 7X16 (2.5") Lenovo ThinkSystem SN850 7X15 (2.5") Lenovo ThinkSystem SR570 7Y02 (2.5"), 7Y03 (2.5") Lenovo ThinkSystem SR590 7X98 (2.5"), 7X99 (2.5") Lenovo ThinkSystem SR630 7X01 (2.5"), 7X02 (2.5") Lenovo ThinkSystem SR635 7Y98 (2.5"), 7Y99 (2.5") Lenovo ThinkSystem SR645 7D2X (2.5"), 7D2Y (2.5") Lenovo ThinkSystem SR650 7X05 (2.5"), 7X06 (2.5") Lenovo ThinkSystem SR655 7Y00 (2.5"), 7Z01 (2.5") Lenovo ThinkSystem SR665 7D2V (2.5"), 7D2W (2.5") Lenovo ThinkSystem SR670 7Y36 (2.5"), 7Y37 (2.5") Lenovo ThinkSystem SR850 7X18 (2.5"), 7X19 (2.5") Lenovo ThinkSystem SR850 V2 7D31 (2.5"), 7D32 (2.5") Lenovo ThinkSystem SR850P 7D2F (2.5") Lenovo ThinkSystem SR860 7X69 (2.5"), 7X70 (2.5") Lenovo ThinkSystem SR860 V2 7Z59 (2.5"), 7Z60 (2.5") Lenovo ThinkSystem SR950 7X11 (2.5"), 7X12 (2.5")
Environmental Parameters
Humidity Range Operating	5 - 95% (non-condensing)
Max Operating Temperature	70 °C
Max Storage Temperature	75 °C
Min Operating Temperature	0 °C
Min Storage Temperature	-40 °C
Shock Tolerance (non-operating)	1000 g @ 0.5 ms
Vibration Tolerance (non-operating)	11.08 g @ 20-2000 Hz
Expansion & Connectivity
Compatible Bay	2.5"
Interfaces	1 x SAS 12 Gb/s
General
Capacity	800 GB
Depth	100 mm
Device Type	Solid state drive - hot-swap
Encryption Algorithm	256-bit AES
Features	Tagged Command Queuing (TCQ), End-to-end data protection, power loss data protection, S.M.A.R.T.
Form Factor	2.5"
Hardware Encryption	Yes
Height	15 mm
Interface	SAS 12Gb/s
NAND Flash Memory Type	3D enterprise triple-level cell (eTLC)
Weight	136 g
Width	70 mm
Manufacturer Warranty
Service & Support	Limited warranty - replacement - 1 year
Miscellaneous
Compliant Standards	UL, TUV, FCC, IC, CB, C-Tick, BSMI, KCC, VCCI, RoHS
Pricing Type	Customer-replaceable Unit (CRU)
Performance
4KB Random Read	180000 IOPS
4KB Random Write	200000 IOPS
Average Latency	25 µs
Drive Transfer Rate	1.2 GBps (external)
Drive Writes Per Day (DWPD)	10
Internal Data Rate	1100 MBps (read) / 1000 MBps (write)
SSD Endurance	14600 TB
Power
Power Consumption	9.3 watt (read) 7.7 watt (write)
Reliability
MTBF	2,500,000 hours
Non-Recoverable Errors	1 per 10^17
