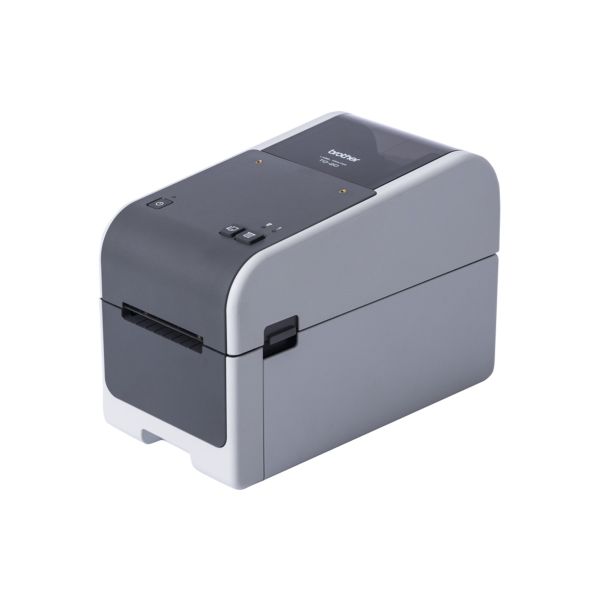

2.3IN DESKTOP PRINTER

Be the first to review this product

Availability: Out of stock

SKU

TD2320D203

UPC Code

012502676126

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

Perfect for price, shelf, markdown, order queue, box, and work-in-progress labels up to 2.4 inches, this 203dpi desktop printer combines enterprise-level connectivity with reliable quality and flexibility. Customize features to fit your process with an optional battery, cutter or label peeler, all within a space-saving design built to endure spills, splashes and the tolls of frequent use.

Specifications

General Information
Category	Label printers
Description	2.3IN DESKTOP PRINTER, DT, 203DPI, 6IPS, USB-C/HOST-USB/SERIAL/LAN, 2YR PREMIER
Manufacturer	Brother
MSRP	$616.00
UNSPSC	43212113
Main Specifications
Height	12.10
Length	12.80
UPC	0012502676126
Width	7.20
Dimensions & Weight
Depth	22.4 cm
Height	15.8 cm
Weight	1.5 kg
Width	11.9 cm
Environmental Parameters
Humidity Range Operating	20 - 80% (non-condensing)
Max Operating Temperature	40 °C
Min Operating Temperature	5 °C
Expansion / Connectivity
Connections	1 x USB 2.0 - Type C 1 x USB host 1 x LAN
Flash Memory
Flash Memory	64 MB
General
Bundled Services	2 years Premier Limited Warranty
Printer Type	Label/receipt printer - direct thermal - monochrome
Manufacturer Warranty
Service & Support	Limited warranty - 2 years
Media Handling
Max Media Size	Roll (6.3 cm)
Max Printing Length	3000 mm
Max Printing Width	59 mm
Media Sizes	Roll (6.3 cm), Roll (1.5 cm)
Media Type	Receipt paper, wristbands, labels, continuous labels, die cut labels
Roll Maximum Outer Diameter	127 mm
Miscellaneous
Cables Included	1 x USB cable
Power
Electric Current Required	1.5 A
Frequency Required	50/60 Hz
Power Device	Power adapter - external
Voltage Required	AC 100-240 V
Printer
Barcodes	Code 39, ITF, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, Codabar, NW-7, Code 128, UCC/EAN-128, GS1 DataBar, Code 93, Postnet, MSI, QR code, MaxiCode, Micro QR code, PDF417, MicroPDF417, Data Matrix, Aztec
Connectivity Technology	Wired
Interface	USB 2.0, USB host, LAN
Language Simulation	DPL, EPL2, ZPL II, EPSON ESC/P, P-touch template, EPSON ESC/P Raster
Max Resolution (B&W)	203 dpi
Print Speed	Up to 152.4 mm/sec - 203 dpi
RAM
RAM Installed (Max)	256 MB
Software / System Requirements
OS Required	Linux, Microsoft Windows 10 / 11, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows Server 2022
