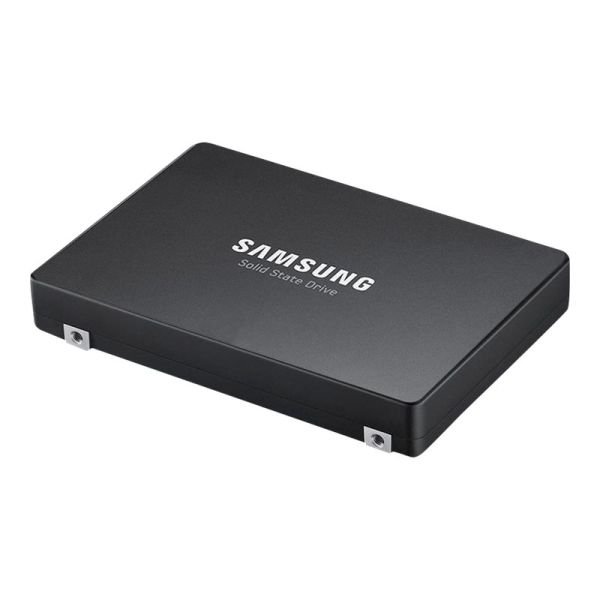

Samsung PM1733a - SSD
Discover the Lenovo PM1733a, a high-capacity, high-performance solid state drive designed for read-intensive applications. With a generous 3.84 TB of storage and a U.3 PCIe 4.0 x4 (NVMe) interface, this hot-swap hard drive delivers exceptional speed and reliability. It boasts an impressive 1600000 IOPS for 4KB random reads and a swift internal data rate of up to 7500 MBps, making it perfect for demanding data environments. Engineered for durability and data security, the PM1733a features an advanced ECC Engine, end-to-end data protection, and an advanced power loss protection architecture. It also offers secure data encryption with Self-Encrypting Drive (SED) technology and TCG Opal Encryption, ensuring your sensitive information remains protected. With compliance to multiple standards including S.M.A.R.T., BSMI, and FCC, this SSD is a reliable choice for various applications.
| General Information | |
|---|---|
| Category | Hard drives |
| Description | Samsung PM1733a - SSD - Read Intensive - encrypted - 3.84 TB - hot-swap - 2.5" - U.3 PCIe 4.0 x4 (NVMe) - Self-Encrypting Drive (SED), TCG Opal Encryption - for ThinkSystem SR635 7Y98 (2.5"), 7Y99 (2.5"); SR655 7Y00 (2.5"), 7Z01 (2.5") |
| Manufacturer | Lenovo |
| MSRP | $13,599.00 |
| UNSPSC | 43201803 |
| Main Specifications | |
| Dimensions & Weight / Depth | 100 mm |
| Dimensions & Weight / Height | 15 mm |
| Dimensions & Weight / Weight | 190 g |
| Dimensions & Weight / Width | 70 mm |
| Hard Drive / Capacity | 3.84 TB |
| Hard Drive / Form Factor | 2.5" |
| Hard Drive / Hard Drive Type | Hot-swap hard drive |
| Hard Drive / Interface | U.3 PCIe 4.0 x4 (NVMe) |
| Hard Drive / Interface | U.3 PCIe 4.0 x4 (NVMe) |
| Header / Brand | Samsung |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Storage / Type | Solid state drive |
| Compatibility Information | |
| Designed For |
|
| Environmental Parameters | |
| Max Operating Temperature | 70 °C |
| Max Storage Temperature | 80 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Shock Tolerance (non-operating) | 1500 g @ 0.5 ms |
| Vibration Tolerance (non-operating) | 20 g @ 10-2000 Hz |
| Expansion & Connectivity | |
| Compatible Bay | 2.5" |
| Interfaces | 1 x U.3 PCIe 4.0 x4 (NVMe) |
| General | |
| Capacity | 3.84 TB |
| Depth | 100 mm |
| Device Type | Solid state drive - hot-swap |
| Features | End-to-end data protection, advanced power loss protection architecture, Advanced ECC Engine, S.M.A.R.T. |
| Form Factor | 2.5" |
| Hardware Encryption | Yes |
| Height | 15 mm |
| Interface | U.3 PCIe 4.0 x4 (NVMe) |
| NAND Flash Memory Type | Triple-level cell (TLC) |
| Weight | 190 g |
| Width | 70 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 1 year |
| Miscellaneous | |
| Compliant Standards | cUL, TUV GS, CB, BSMI, KC, VCCI, RCM, FCC, IC |
| Performance | |
| 4KB Random Read | 1600000 IOPS |
| 4KB Random Write | 170000 IOPS |
| Average Latency | 25 µs |
| Drive Class | Read Intensive |
| Drive Writes Per Day (DWPD) | 1 |
| Internal Data Rate | 7500 MBps (read) / 4100 MBps (write) |
| SSD Endurance | 7008 TB |
| Power | |
| Power Consumption |
|
| Reliability | |
| MTBF | 2,000,000 hours |
| Non-Recoverable Errors | 1 per 10^17 |
